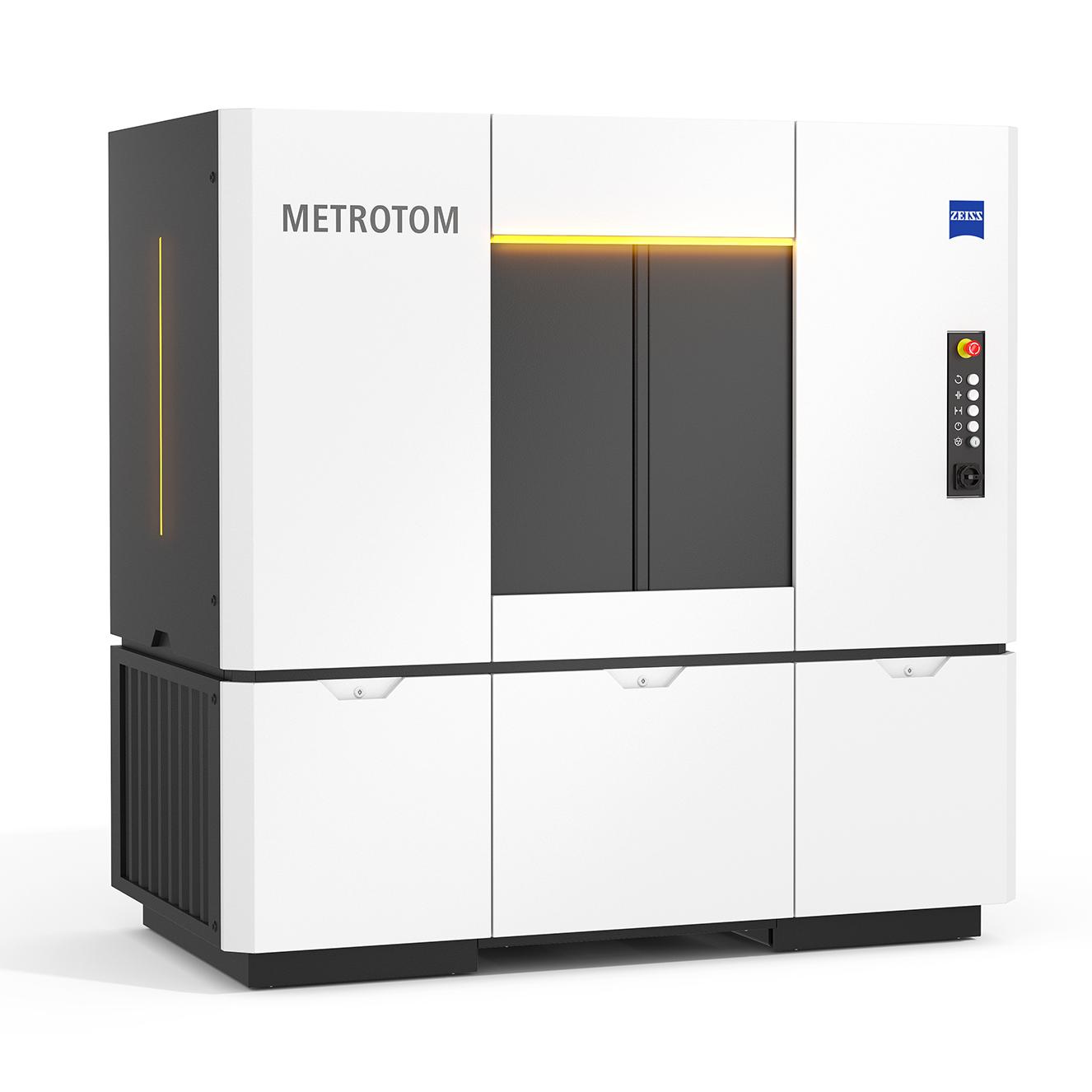

METROTOM 6 scout
De krachtpatser van resolutie voor CT-inspectie en metrologie
ZEISS METROTOM 6 scout digitaliseert complexe onderdelen, inclusief interne geometrieën op het meest geavanceerde detailniveau. Het resultaat is een compleet 3D-beeld voor GD&T-analyse of doel-werkelijke vergelijkingen. Het CT-meetsysteem is een uitstekende keuze voor het digitaliseren van kleine kunststofonderdelen.
Metingen met hoge resolutie van kleine kunststofonderdelen
ZEISS METROTOM 6 scout is de perfecte oplossing voor niet-destructieve inspectie en 3D-metrologie van componenten. Geavanceerde meetprestaties en een naadloze workflow garanderen maximale betrouwbaarheid en precisie bij het opsporen van defecten.
![Maak het onzichtbare zichtbaar]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg"} "Maak het onzichtbare zichtbaar")
![Maak het onzichtbare zichtbaar]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg"} "Maak het onzichtbare zichtbaar")
Maak het onzichtbare zichtbaar
Resolutie

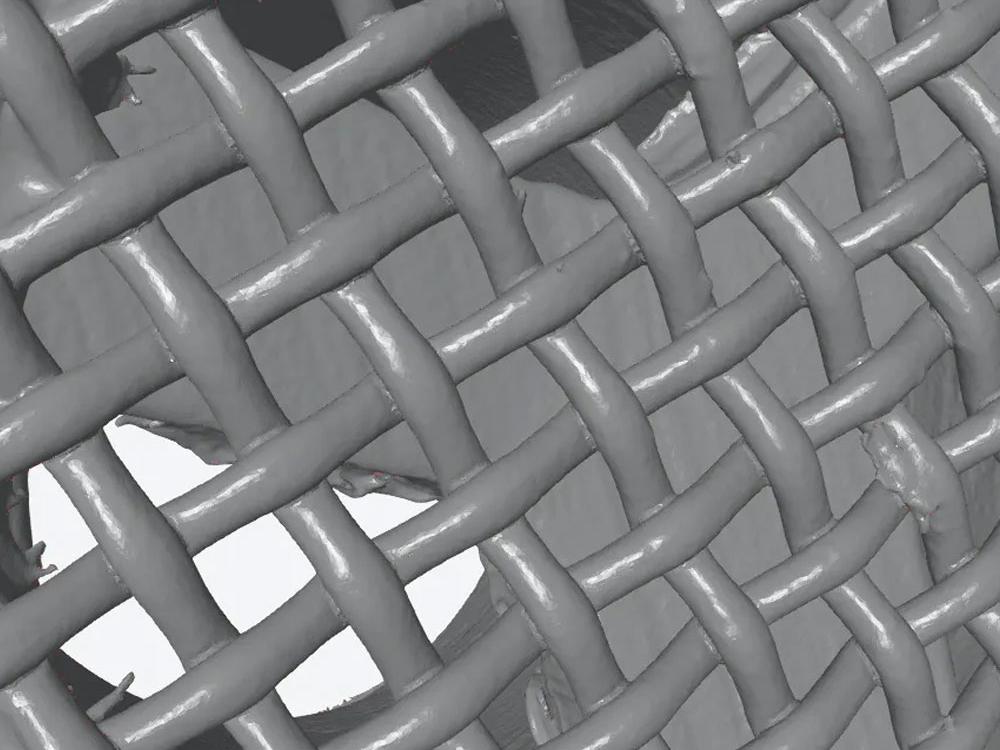

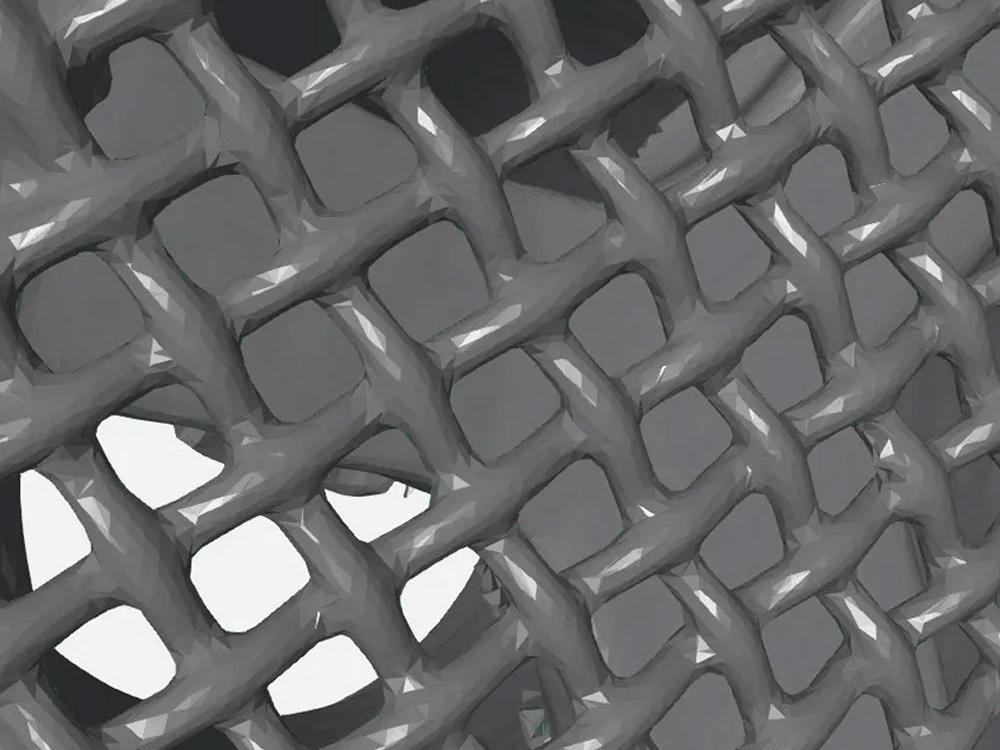

Bij het digitaliseren van een onderdeel bereikt ZEISS METROTOM 6 scout een uitstekende detailscherpte: ten eerste omdat het een 3k-röntgen detector gebruikt om de meetgegevens te verzamelen. Ten tweede omdat elk onderdeel wordt gemeten in de best mogelijke meetpositie en dus altijd met de hoogst mogelijke resolutie. Het resultaat is te zien in de afbeelding: Links meetgegevens gegenereerd met de ZEISS METROTOM 6 scout en rechts de gebruikelijke standaard.
![Garandeert hoge precisie]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-tileteaser.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-tileteaser.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-tileteaser.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg"} "Garandeert hoge precisie")

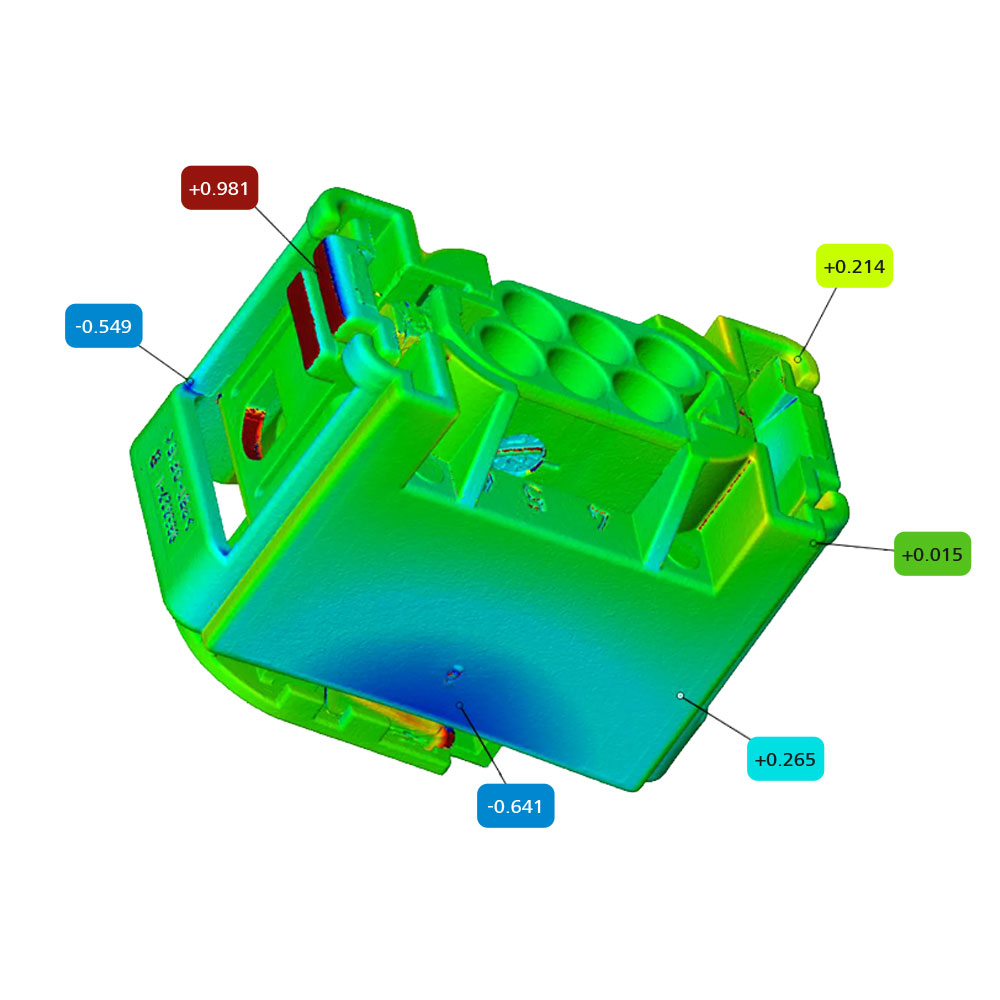

Garandeert hoge precisie
Nauwkeurigheid
De ZEISS METROTOM 6 scout maakt gebruik van wiskundige intelligentie om nauwkeurige 3D-meetgegevens te genereren. Tijdens het gehele meetproces combineert het algoritmen met digitale modellering van de meetruimte. Het biedt ook optimale mechanische stabiliteit voor alle componenten die relevant zijn voor de meting. Waar het op neerkomt: Op basis van de meetresultaten kun je de kwaliteit van een onderdeel op een betrouwbare en zeer nauwkeurige manier evalueren en verdere analyses uitvoeren.
Centreert onderdelen automatisch
Een 5-assige kinematicasysteem met een geïntegreerde centreertafel positioneert het onderdeel optimaal in de meetomvang. Plaats het in de meetruimte van de machine - de rest wordt gedaan door de software.

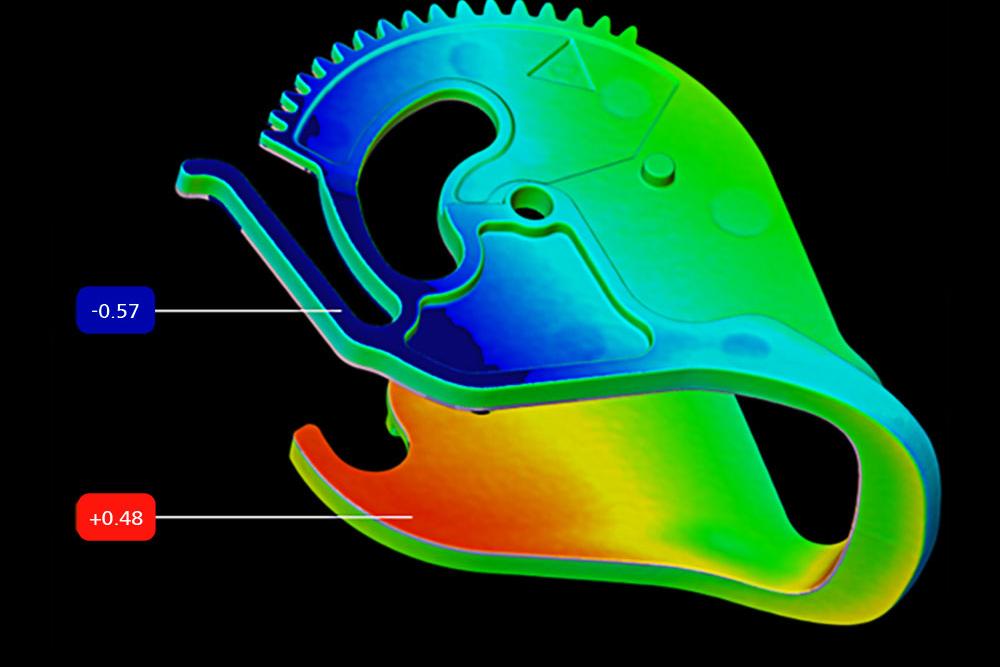

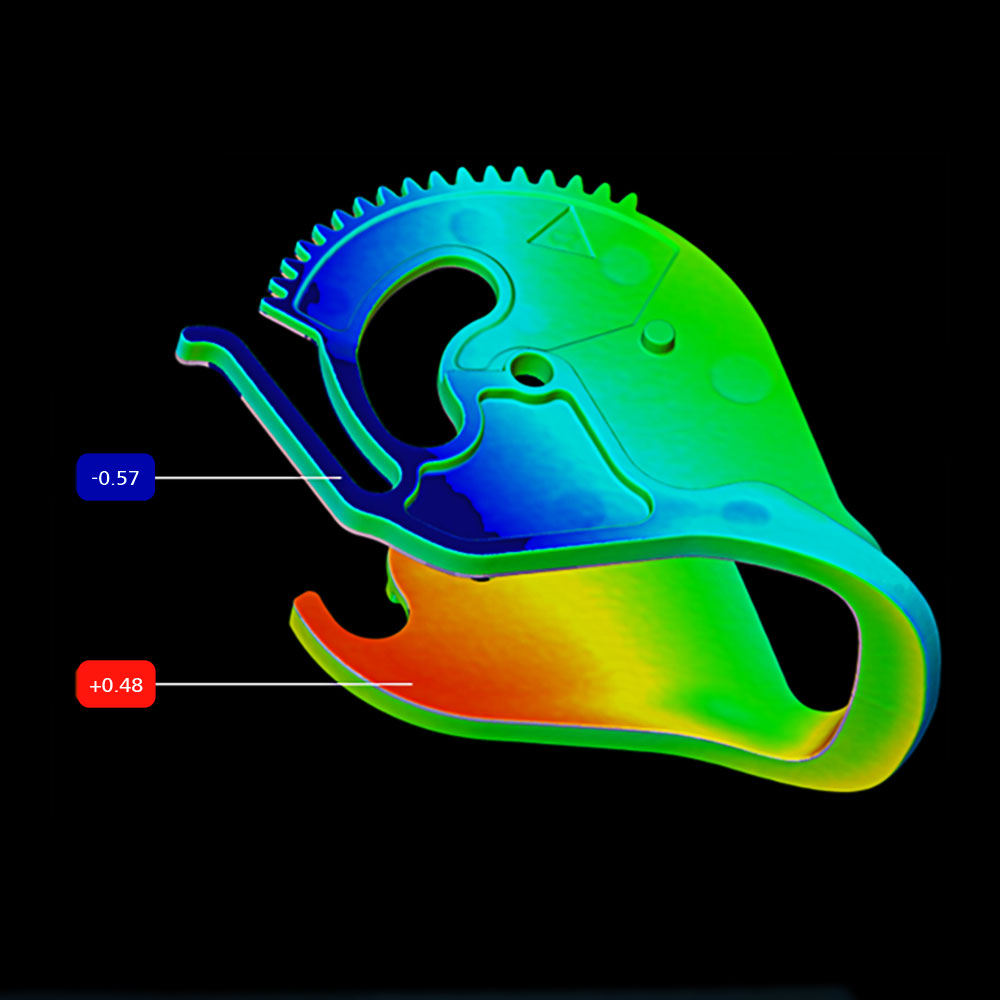

Alles-in-één software
![Intuitive and powerful]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.100.67.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.360.240.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.768.512.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg"} "Intuitive and powerful")
![Eén oplossing voor alle proces-stappen]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-scout-inspect.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-scout-inspect.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-scout-inspect.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg"} "Eén oplossing voor alle proces-stappen")
![Intuïtief en krachtig]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg"} "Intuïtief en krachtig")
![ZEISS METROTOM 1500]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg"} "ZEISS METROTOM 1500")
![ZEISS METROTOM 800 225 kV HR]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg"} "ZEISS METROTOM 800 225 kV HR")
![ZEISS METROTOM 6 scout]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg"} "ZEISS METROTOM 6 scout")
![ZEISS METROTOM 800 130 kV]({"xsmall":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","small":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","medium":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","large":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xxlarge":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","max":"https://www.zeiss.be/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original./zeiss-3d-x-ray-metrotom-800-130-800-600.jpg"} "ZEISS METROTOM 800 130 kV")
Technische gegevens
Functie
|
X-ray-bron |
225 kV |
|---|---|
|
X-Ray detector |
Resolutie: 3008 x 2512 pixels |
|
Meetbereik |
d: 240 mm |
|
Voxelgrootte |
2 µm - 80 µm |
|
Afmeting |
H. 2210 mm |
|
Gewicht |
4800 kg |
|
Toepassingsgebied |
Eerste artikelinspectie, gereedschapscorrectie en inspectie tijdens lopende productie |
|
Inspectie-kenmerken |
Interne structuren, wanddikte, materiaaldefecten, poriën en krimpholtes |
|
Meettaken |
GD&T-analyse, nominale-actuele vergelijking, montageanalyse |
