PONTOS Live

Optical 3D metrology for tracking and probing

Designed for the production environment, the PONTOS Live tracking system is used for the live positioning of parts. Equipped with the Touch Probe, the system enables the combination of optical and tactile measurements.

Live positioning of parts
Continuous tracking with optical sensor
Combining optical and tactile techniques

Features

PONTOS Live is a tracking system designed for real-time positioning of parts, specifically tailored for production environments. Equipped with a Touch Probe, the system allows to combine optical and tactile measuring techniques. Through dynamic referencing, the measuring object is continuously tracked by the optical sensor.

Technology

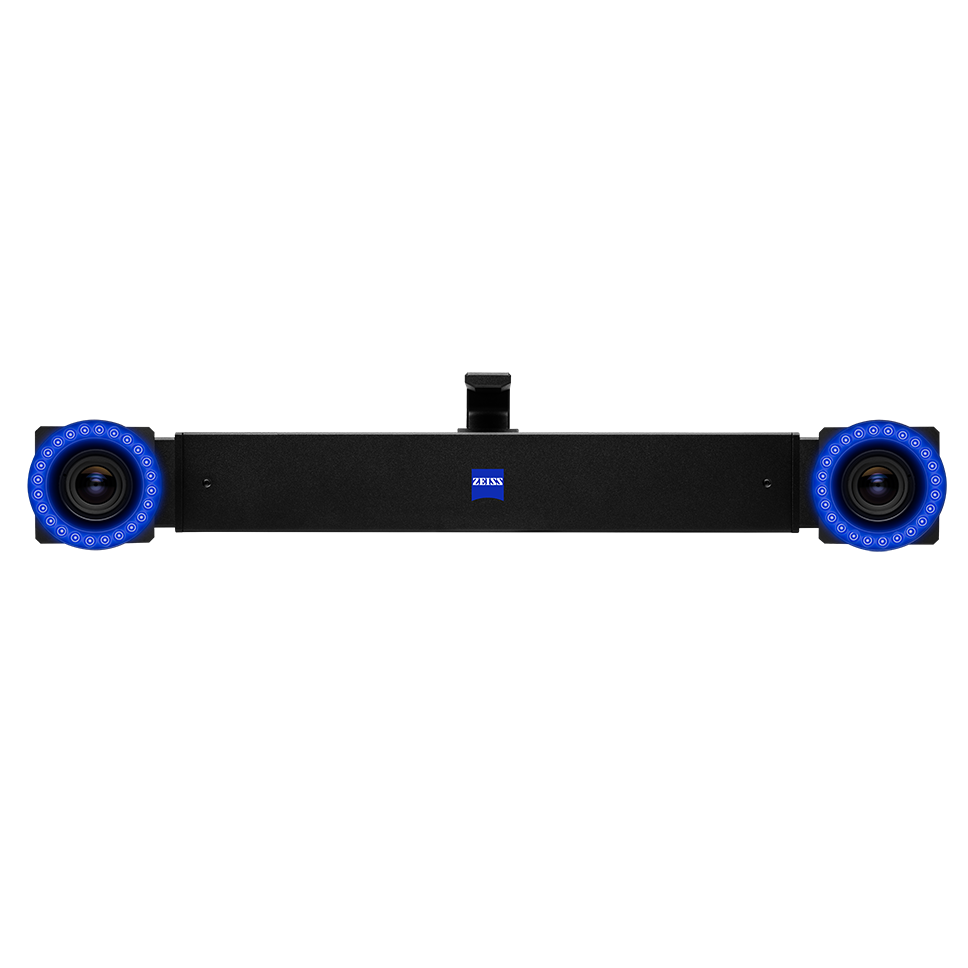

Stereo camera

The stereo camera system provides precise 3D coordinates of reference point markers. Incorporated within an industrial housing, the pre-set and certified lenses contribute to heightened stability, minimizing the need for frequent sensor calibration. Users can easily change the measuring volume, enabling the measurement of objects ranging from small to large.

Live functionality

The live functionality enables real-time measurements and online positioning. This capability is supported during measurements with Touch Probes and Adapters, facilitating the precise alignment and positioning of components to the CAD in an online measurement.

Touch Probe

The Touch Probe serves as a tactile extension for measuring systems, being optically tracked by the sensor. It is used for tactile measurements and allows measuring coordinates even in areas that are difficult to access.

Adapter

The adapters provide additional possibilities for real-time measurements, including component positioning and the measurement of geometric elements and edges.

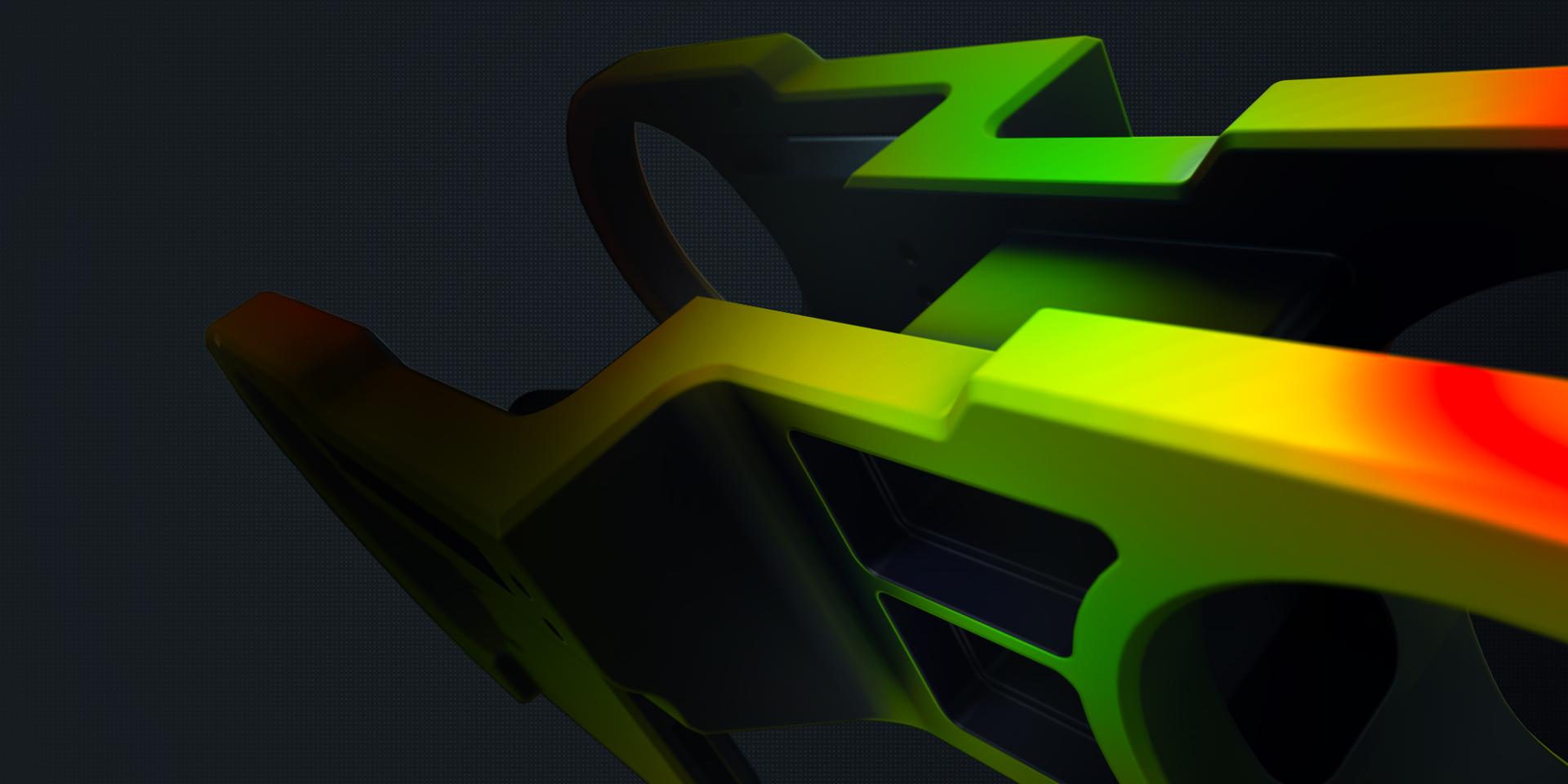

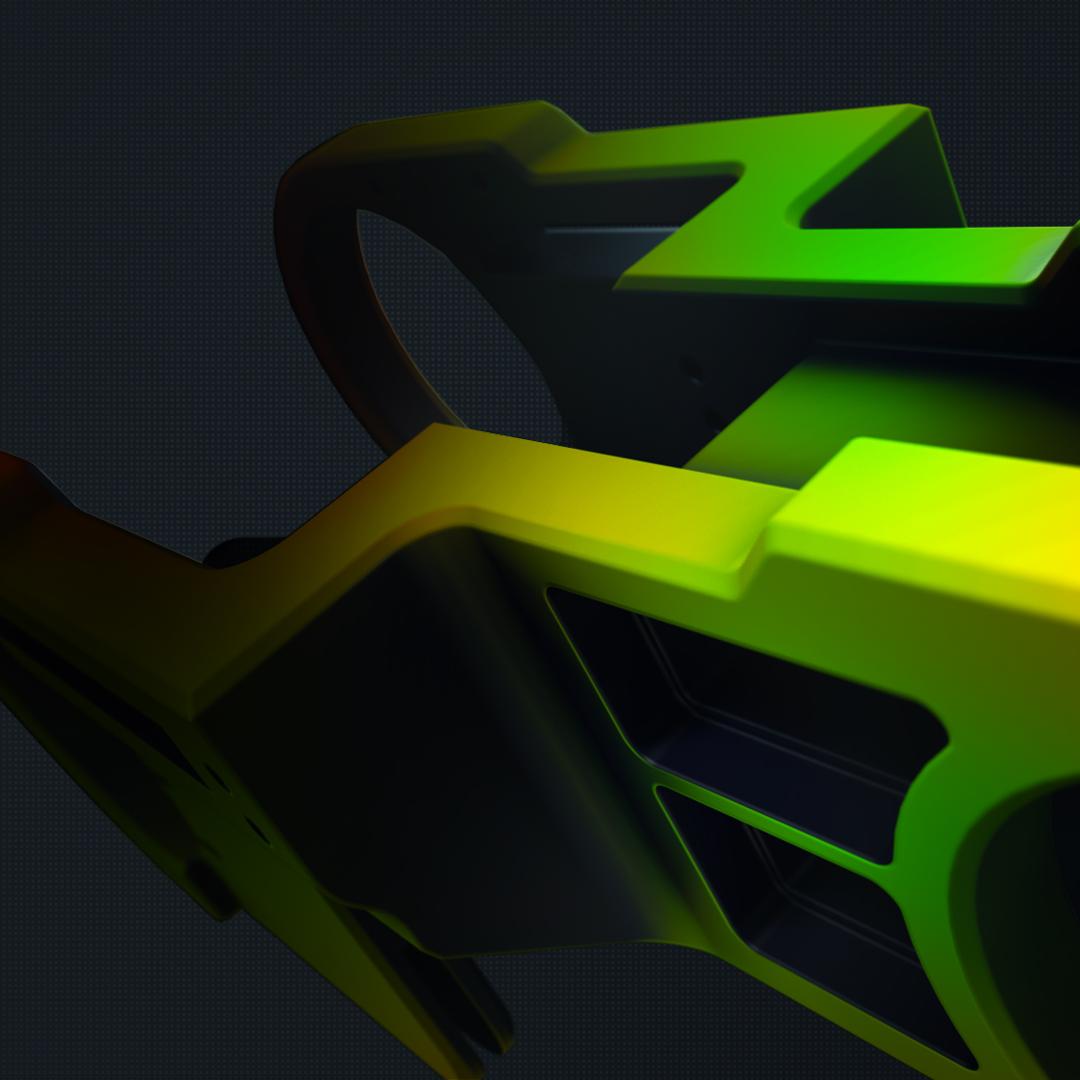

Effective tool for analysis

ZEISS INSPECT offers everything from a single source

Scanning, inspection and reporting: The software guides you through the entire workflow. Examine nominal-actual comparisons as well as GD&T tolerances. Implement necessary corrections directly thanks to easy-to-understand results. Use ZEISS INSPECT to analyze completely, receive comprehensive reporting and integrate measurement results into existing processes.
