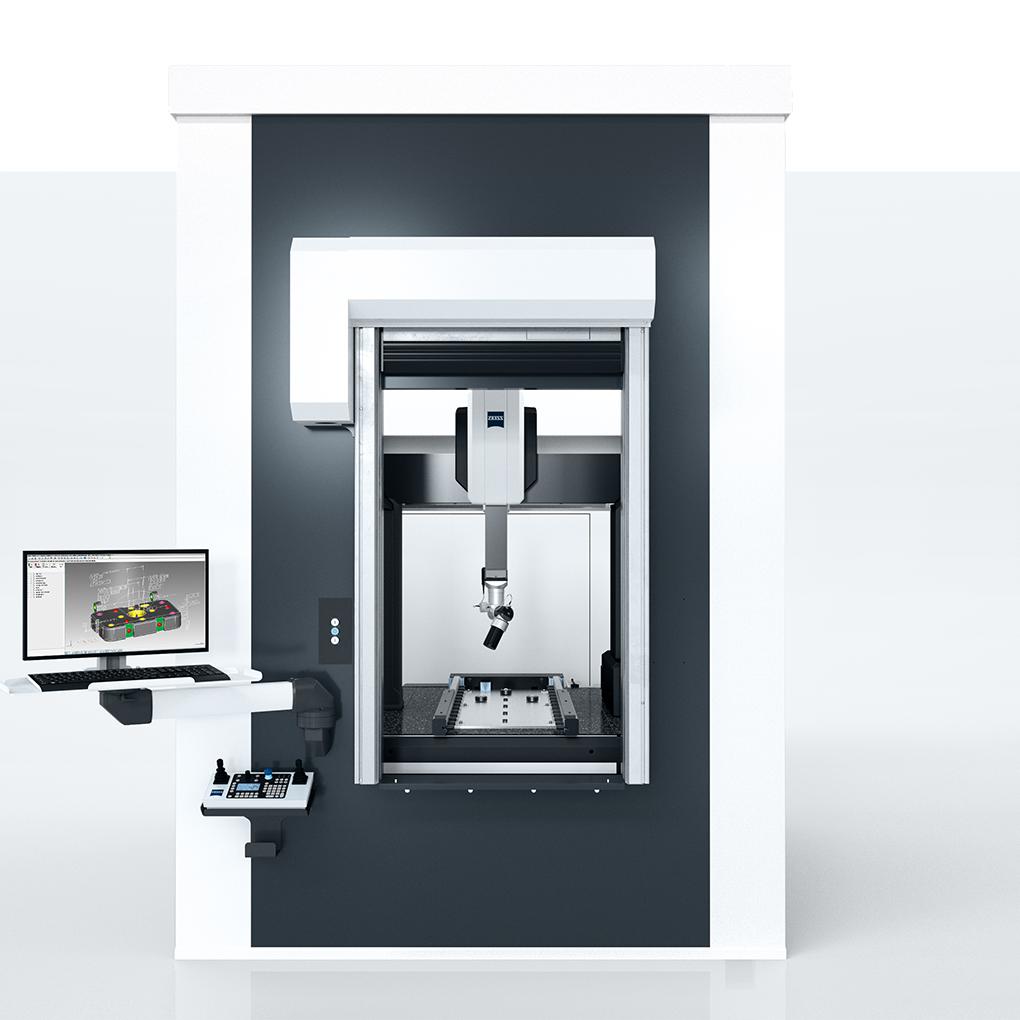

ZEISS Integration Series

The automated and driverless transport system between production and the measuring room enables flexible production with optimum and systematic utilization of quality assurance and production machines.

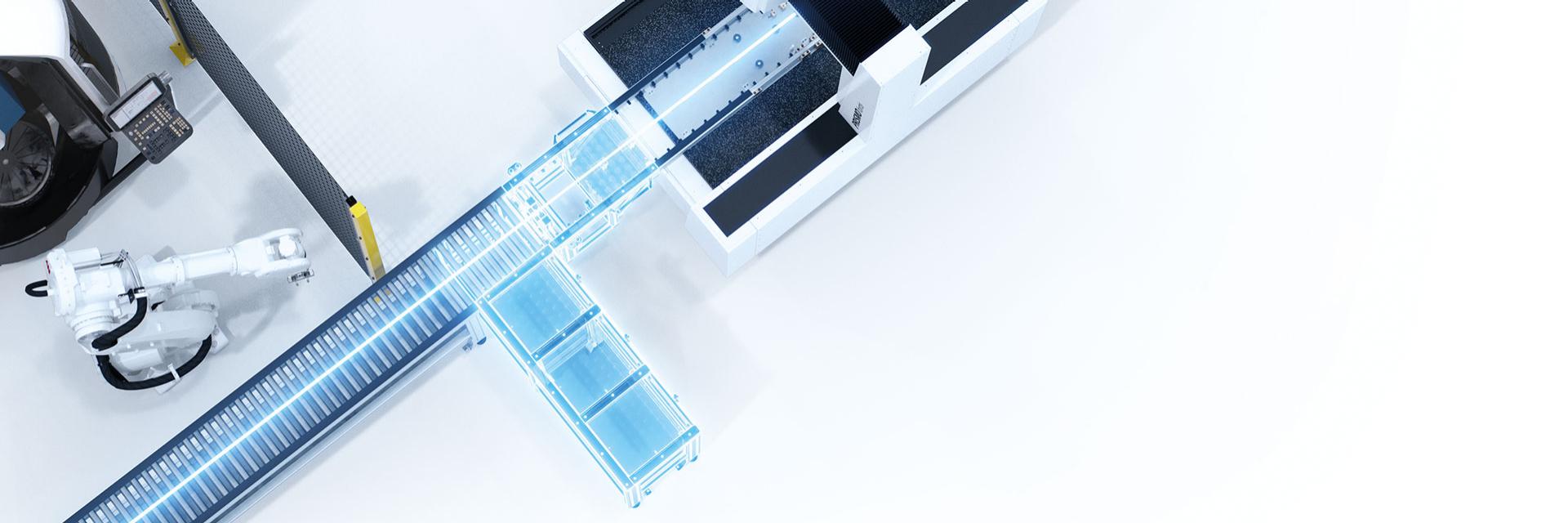

The direct integration of the CMM into the line enables efficient 100% inspection. The workpieces on the conveyor belt pass directly through the measuring volume, eliminating the need for time-consuming workpiece handling. Errors are recognized immediately and rejects are avoided.

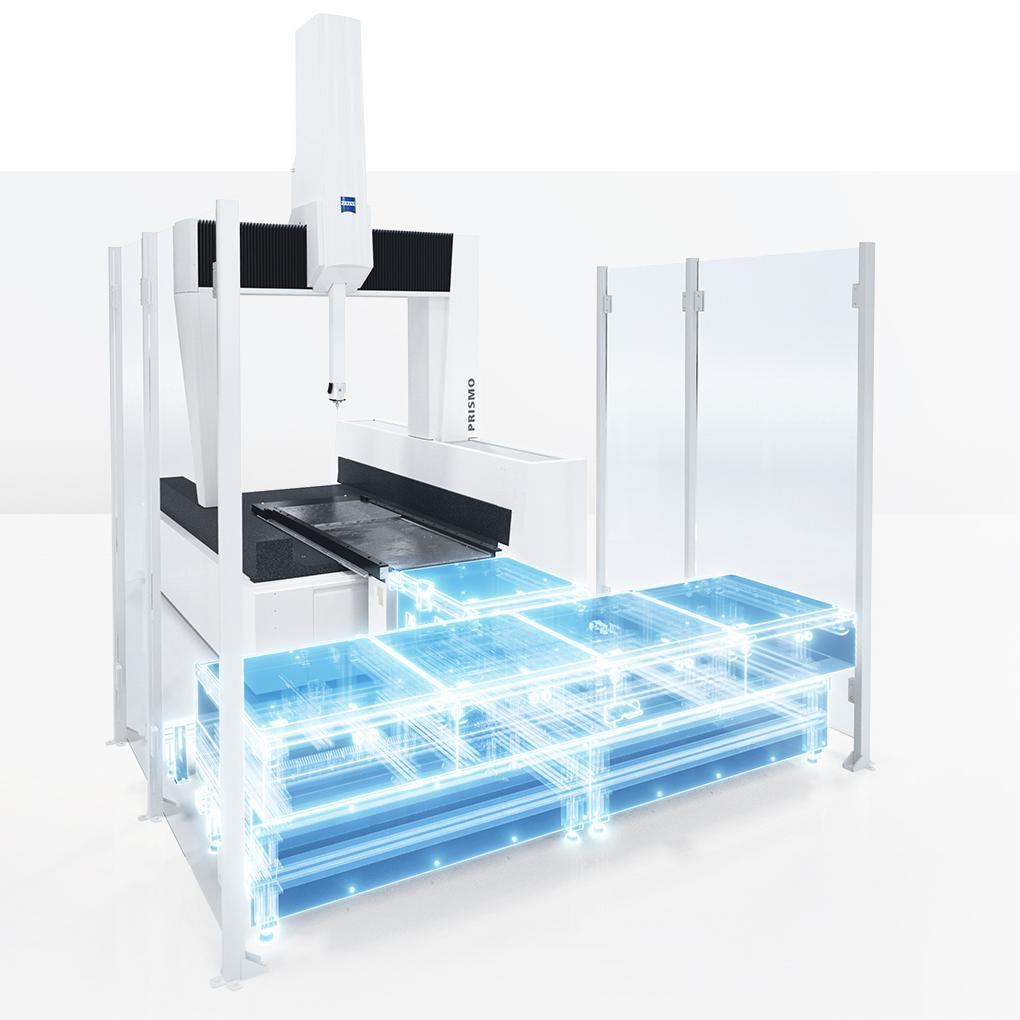

Early troubleshooting becomes possible thanks to timely quality statements directly at the point of production. The combination of production-ready CMMs and matching loading systems can be perfectly tailored to your needs.

Even CMMs that are not suitable for production environments by design can be installed in a controlled environment, for example to perform at-line sample inspections.

The remote-controlled, mobile honeycomb plate CARFIT eMOBEE efficiently transports components and sustainably simplifies loading processes. With horizontal arm measuring devices from ZEISS, configurations can be adapted to your car body production.

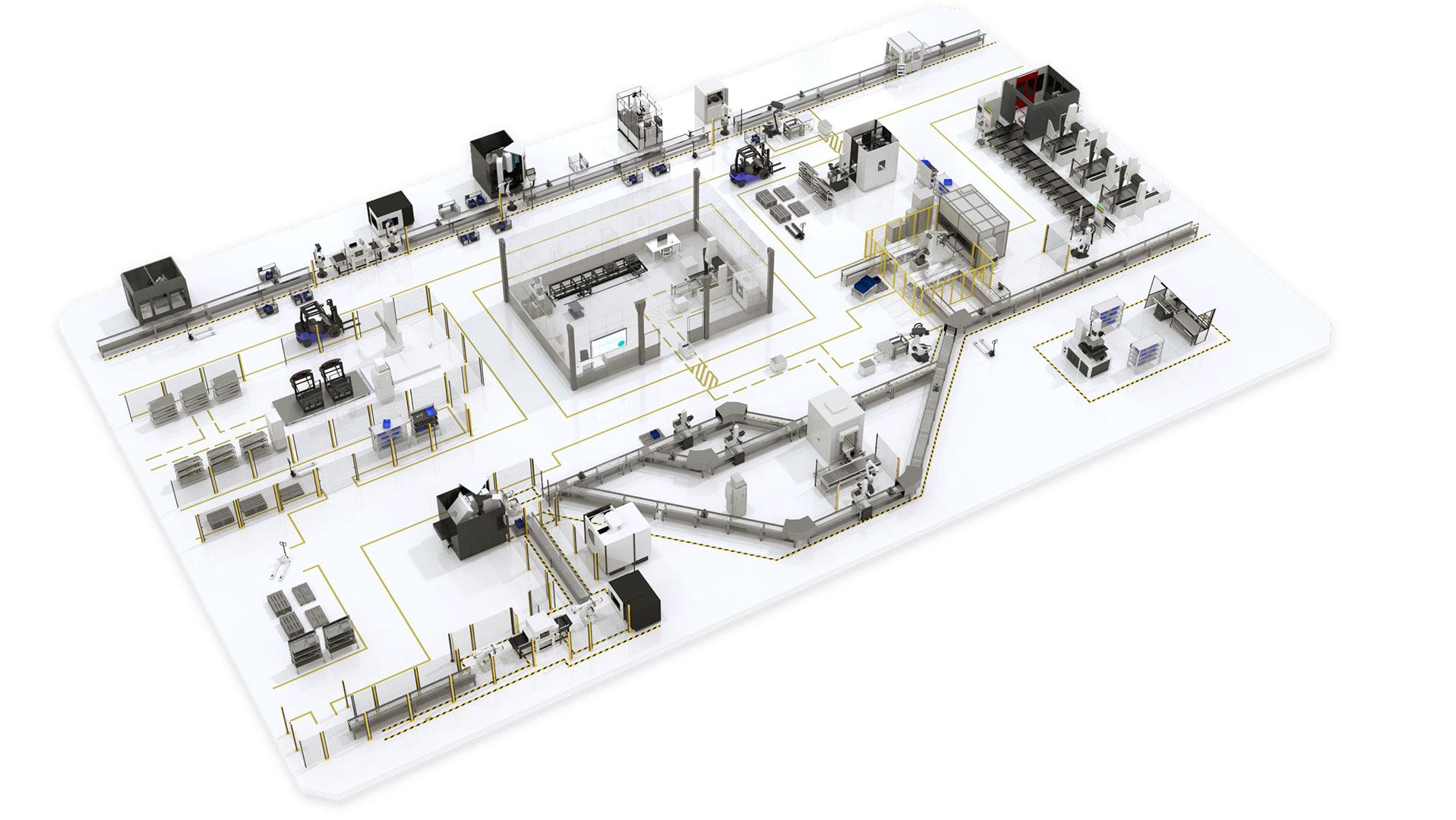

ZEISS supports you as a total quality assurance provider and partner planning and setting up your production-related measuring room or provides you with a complete and customized measuring room.

Targeted handling of big data starting from data visualizations of measurement results, machine states etc., up to employee-related information – exactly where it is needed.

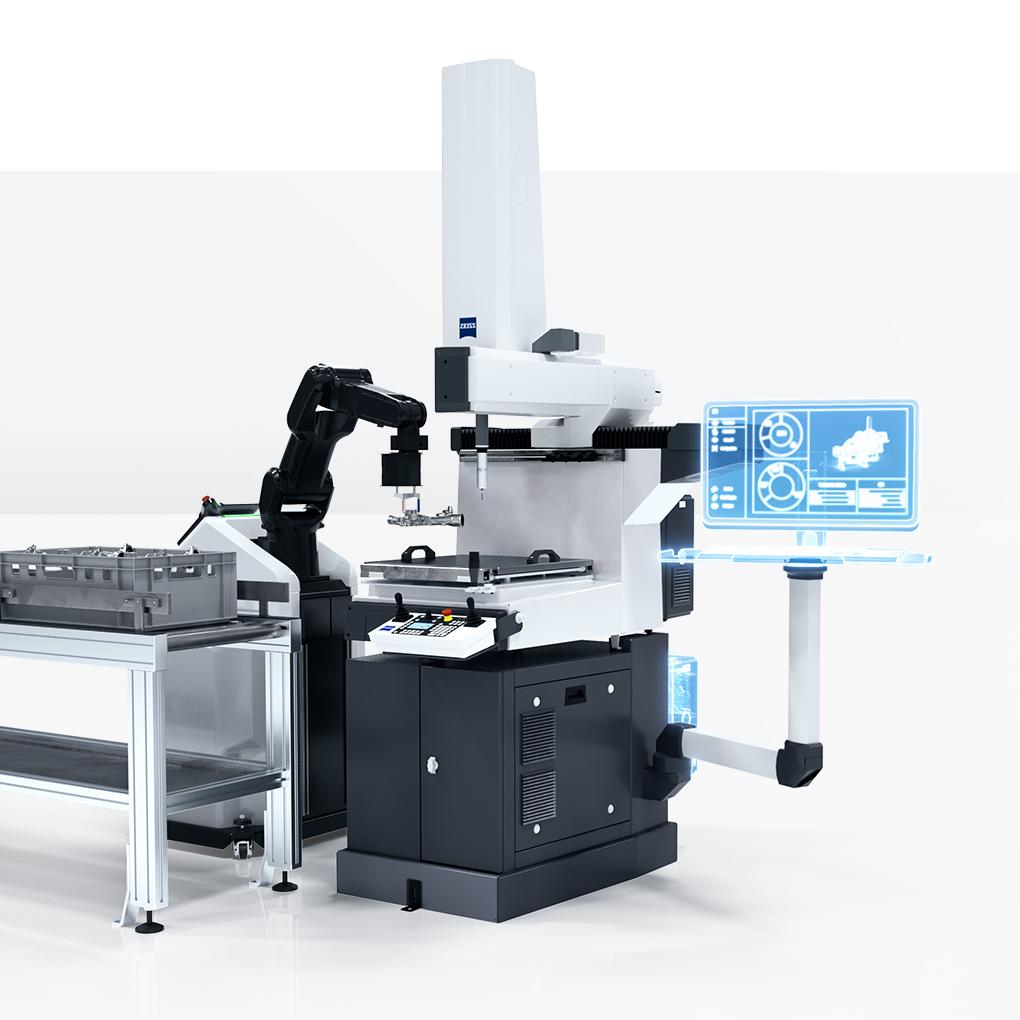

By positioning CMMs and robots on the same platform, the automated measuring cell can be flexibly placed in production and loaded manually or automatically.

The robust 2D X-ray system reliably and quickly inspects castings of medium to large size as well as low and medium density. Integrated into a robotic cell, BOSELLO OMNIA helps you achieve high throughput directly in your production line, around the clock.

Automated measuring cells allow your measuring processes to run during unmanned shifts. The pallet storage can be loaded and measuring tasks can be executed systematically.

Individually configured interfaces according to your needs enable communication between quality assurance and automation technology in production.

Manual or fully automated outsourcing of CMM measurements increases productivity by saving valuable time that would otherwise be lost to the EDM machine.

Here as an example: optical component inspection combined with tactile absolute measuring in one protocol – including automatic loading of the station.

The breakthrough quality assurance solution for reliable high-speed optical defect detection: a combination of deflectometry-based, high-resolution optical sensors from ZEISS and machine learning.
