Surface reconstruction and tool correction

ZEISS REVERSE ENGINEERING

Surface reconstruction and tool correction

Do you want to create CAD models quickly and simply from polygon meshes or point clouds? Or do you want to reduce tool optimization iterations in mold making and improve your CAD data for additive manufacturing?
All this is possible with ZEISS REVERSE ENGINEERING.

On this page, you learn how to create CAD models for components with ZEISS REVERSE ENGINEERING. To correct CAD data of tools and printed parts, go here to learn everything about the tool correction option.

  • Automated
  • Interactive in a guided workflow
  • Highly precise – even in case of sophisticated freeform surfaces

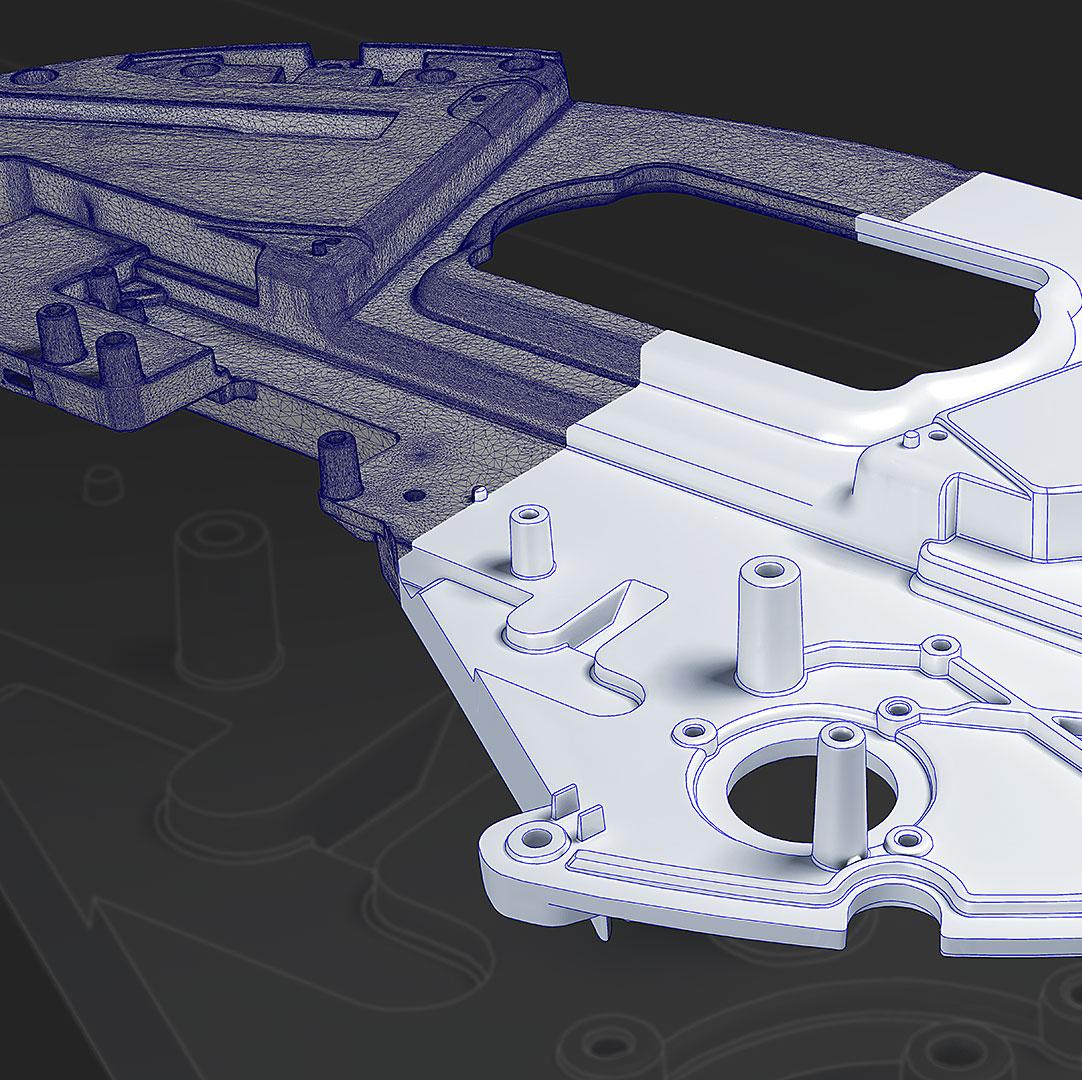

Powerful surface reconstruction software

Scan a component in ZEISS INSPECT or any other software and import your STL or PLY data and ASCII formats into ZEISS REVERSE ENGINEERING. Just a few guided steps result in a highly precise CAD model that you can export into common formats such as IGES, STEP or SAT.

What you can expect

  • System independence

    System independence

    It makes no difference if you create your STL data with a 3D scanner, an X-ray CT system or a coordinate measuring machine. ZEISS REVERSE ENGINEERING is capable of importing measuring data from any given measuring system.

  • High precision

    High precision

    Import any number of raw points from your scan data – there are no limits at all. This is how you create highly accurate surfaces.

  • Large functionality set

    Large functionality set

    Edit your measuring data with practical functions for STL data, such as filling holes or smoothing surfaces. Afterwards, you can combine or blend the newly created CAD surfaces, add chamfers or radii and apply Boolean operations or volume functions (extrusion, lofting, sweeping). The result is a solid CAD model.

CAD models for any conceivable shape

Geometrical parts

Powerful functions for components with standard geometrical shapes: Export your data into ZEISS REVERSE ENGINEERING and get busy creating, combining, extracting and adjusting them. The software guides you through the entire process – until you achieve exactly the result that you want.

Freeform surfaces

ZEISS REVERSE ENGINEERING offers various functionalities for achieving highly precise freeform surfaces. For instance, use “Surface approximation to points” when converting your data, and let the software guide you through the process step by step until your component has been created.

Organic shapes

The software is equipped with special engineering tools for accurately remodeling flowing, organic shapes. The best thing about this is: It takes only a few clicks from importing the scan data to the complete 3D model – even in case of sophisticated object designs. Watch this video to see how it works.

Even faster to CAD thanks to 2D-Sketching

The new feature saves you even more time when creating your CAD model - especially when it comes to complex geometries. The principle of the sketch function: Sketches are created in sectional planes, which are optimized by defining dimensions and constraints. In the final step, bodies can then be created from the sketches simply with a mouse click.

Everything you need

Functions

ZEISS REVERSE ENGINEERING

Product option tool correction

CAD import
- STEP, IGES, SAT

Import mesh/points
- STL, G3D, PLY, OBJ, CSV, TXT

Alignment

Advanced alignment functions
- Best-fit/Surface-fit
- Manually/Automatically

Mesh editing

Advanced mesh editing functions
- Invert points


Automatic mesh-based surface creation (Autosurfacing)


Model high-precision freeform surfaces

2D Sketching
- Geometries
- Constraints
- Dimensions

Advanced CAD/surface functions
- Lift surfaces
- Exchange surfaces

Best-fit/Manually create 2D and 3D geometrical elements

Nominal-actual comparison

Advanced analysis functions
- Identify undercuts
- Check forced demoldability
- Analyze draft angle (CAD & STL)

Reporting

CAD export

Tool-correctie bij het produceren van vormen

ZEISS REVERSE ENGINEERING vermindert tot 50% van de iteratielussen in het tool-correctieproces. Meer informatie over
productoptie tool-correctie die beschikbaar is als aanvulling op ZEISS REVERSE ENGINEERING.

A powerful pair: ZEISS INSPECT and
ZEISS REVERSE ENGINEERING

A seamless workflow is possible with the ZEISS INSPECT inspection software.
A seamless workflow is possible with the ZEISS INSPECT inspection software.

The metrology software by ZEISS is united in a central platform: the ZEISS Quality Suite. Providing an uninterrupted data flow, it accompanies you through the entire workflow.

What does that mean in the field? If you collect, optimize and align your scan data with the help of the ZEISS INSPECT inspection software, you can transfer the processed data to ZEISS REVERSE ENGINEERING with one mouse click. It automatically creates a new project, so that you can start with the CAD modeling right away.
