Airfoil Inspection

Airfoil Inspection

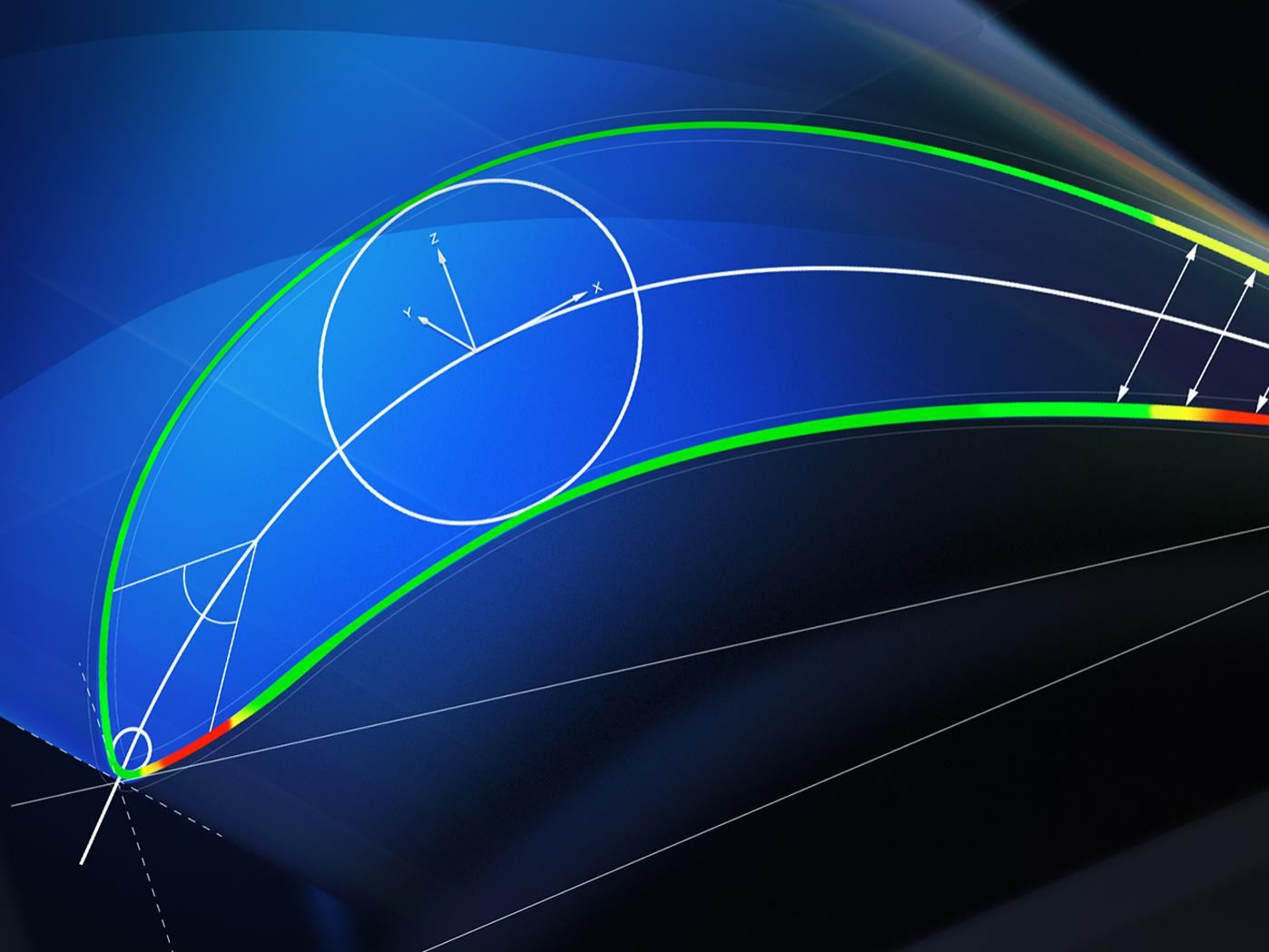

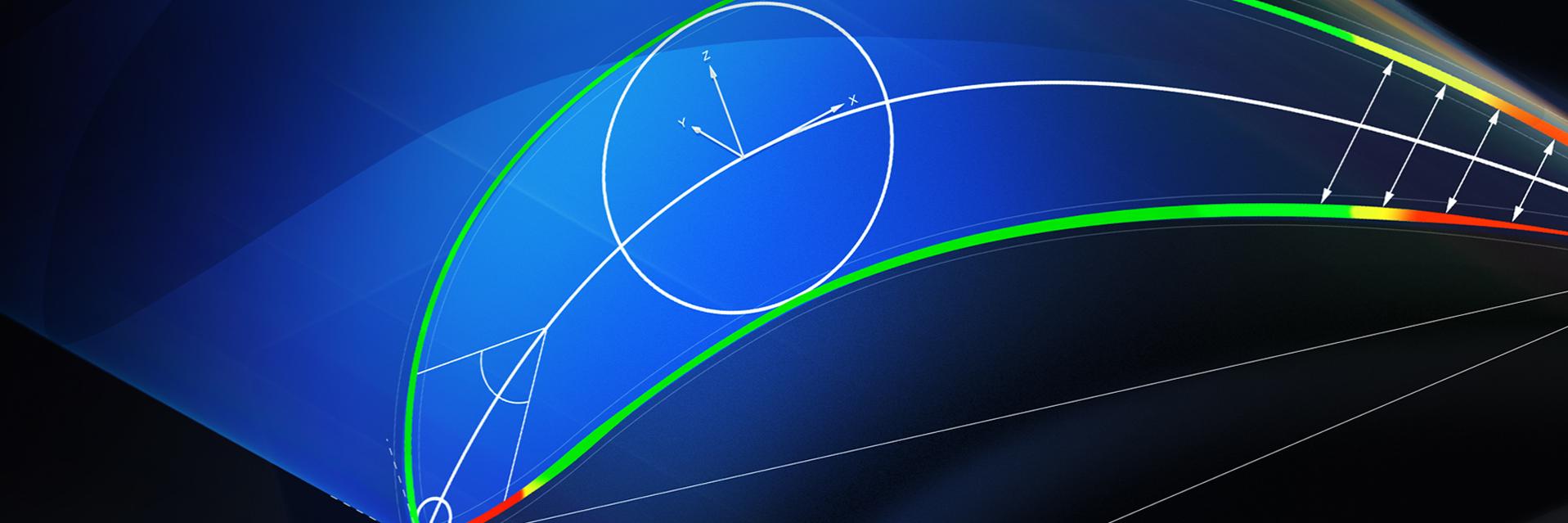

The inspection app for airfoil geometries
ZEISS INSPECT Airfoil

Inhoud van derden geblokkeerd

De videospeler is geblokkeerd vanwege uw trackingvoorkeuren. Om de instellingen te wijzigen en de video af te spelen, dient u op de onderstaande knop te klikken en in te stemmen met het gebruik van "functionele" trackingtechnologieën.

The ZEISS INSPECT app Airfoil Inspection will help you ensure that everything runs smoothly in terms of blade geometry. Whether in power supply, aircraft and shipbuilding, electrical appliances or the automotive industry – the app analyzes both optical and tactile measurement data from coordinate measuring machines (CMMs) and is compatible with all common data formats. From design to quality control, the software supports you in the efficient analysis of your measurement data. Take advantage of our tailored analysis tools for blades and airfoils.

Inhoud van derden geblokkeerd

De videospeler is geblokkeerd vanwege uw trackingvoorkeuren. Om de instellingen te wijzigen en de video af te spelen, dient u op de onderstaande knop te klikken en in te stemmen met het gebruik van "functionele" trackingtechnologieën.

3D throat area

Unique on the market: digital analysis of the throat area. Use the Airfoil Inspection app to determine the minimum three-dimensional area between two blades. This gives you the geometrically narrowest cross-section – regardless of whether it is a partial area or a closed channel.

Inhoud van derden geblokkeerd

De videospeler is geblokkeerd vanwege uw trackingvoorkeuren. Om de instellingen te wijzigen en de video af te spelen, dient u op de onderstaande knop te klikken en in te stemmen met het gebruik van "functionele" trackingtechnologieën.

Virtual balancing

Advanced evaluation

A digital twin saves you valuable assembly time. Based on the digital 3D model, you define the ideal order of blades before assembly and to minimize imbalances. ZEISS INSPECT supports you step by step.

Create your own functions

Create your own functions

Individual

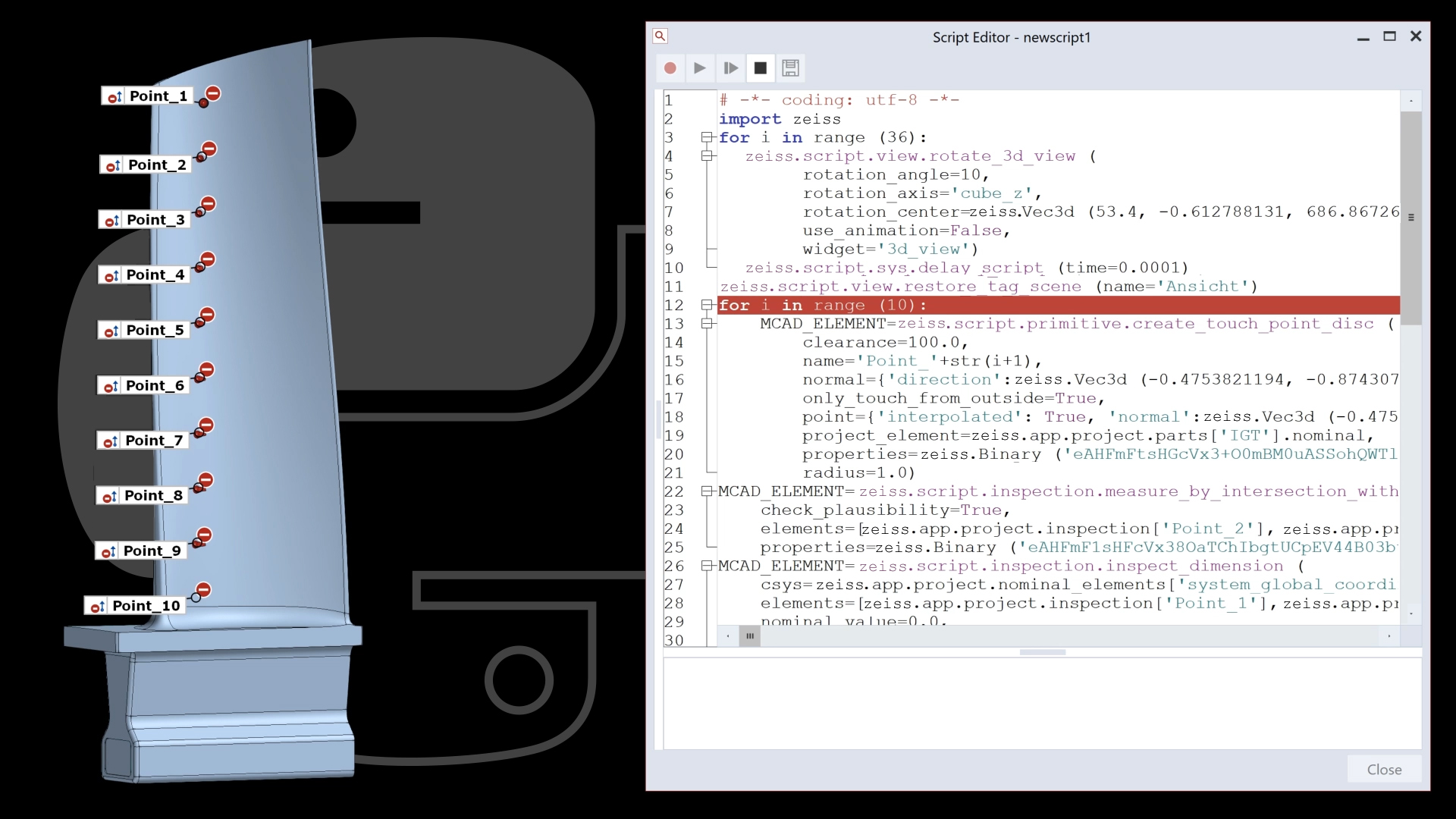

Using Python interface and the command recorder in ZEISS INSPECT, you can record all operations in the software, and save them as a script. You can edit and customize this code and get functions that will make your work easier.
Or make it easy on yourself and take a look at further ZEISS INSPECT apps: Here we have already implemented many functions that streamline your processes and reduce process fluctuations.

Save time and money

Save time and money

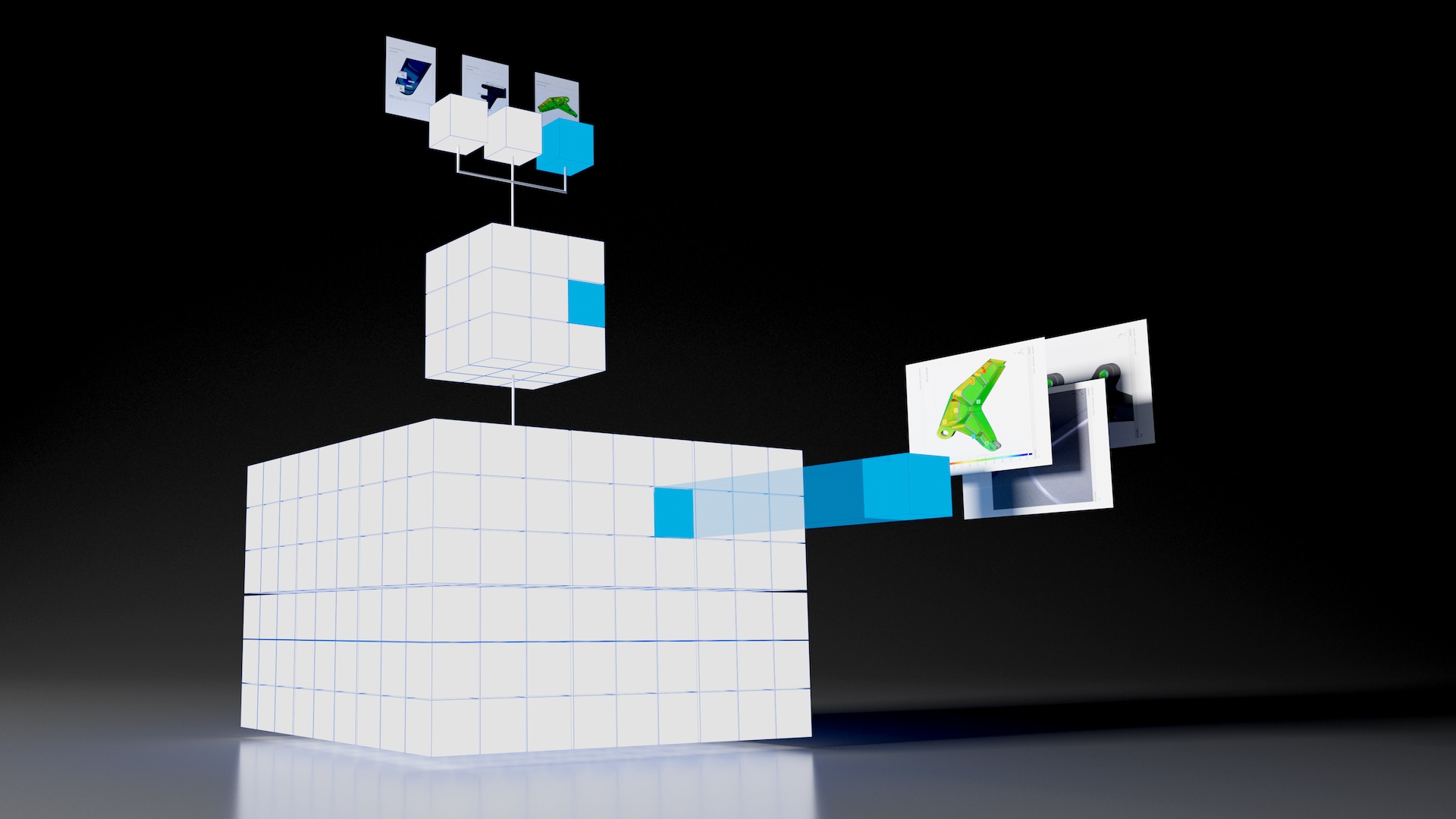

Basic parametric principle

Same series, new part? Thanks to the parametric kernel of ZEISS INSPECT, you do not need a new inspection plan. That’s because all inspection steps are saved in the background enabling you to use them over again, or adapt them to new circumstances, and create your measurement reports. Welcome to a new level of efficiency.

Suitable apps for your tasks

Suitable apps for your tasks

Industry-specific functions

Expand the range of functions of ZEISS INSPECT with suitable apps. In addition to an app for efficient blisk measurement, you will find many other applications that make your work even easier. Find all apps in the ZEISS Quality Software Store.

A look into practice

  • Measuring and analyzing blisks

    If you measure and inspect a single blade of a blisk, ZEISS INSPECT allows you to efficiently repeat this process for any number of additional blades on the blisk.

  • Measuring and analyzing guide vanes

    A guide vane usually consists of a vane blade as well as a hub and a casing cover band. The complete inspection of a guide vane is also easily possible with ZEISS INSPECT.

  • Measuring and analyzing drums

    Drums consist of several blisks. These blisks are welded together to form a drum. With ZEISS INSPECT, you can also inspect complete drums.

Our services for you

In addition to the specialist applications of ZEISS INSPECT for airfoil analyses, we also offer other services to support you in your everyday work.

  • Open for all systems

    Open for all systems

    Whatever hardware you use to measure your airfoils and blades: ZEISS INSPECT supports all common file formats – both optical and tactile measurement data. This secures your investments.

  • Regular updates and further developments

    Regular updates and further developments

    Our clients are at the heart of our development work. All updates and further developments therefore help you directly in practice. 

  • Worldwide support and service

    Worldwide support and service

    No matter where, no matter when: we can support you online or in person.  

    Our comprehensive service gives you full access to the regular optimizations for your ZEISS INSPECT software.

  • Get started now with the Airfoil Inspection app

    Get started now with the Airfoil Inspection app

    You want to take advantage of our tailored analysis tools for blades and airfoils? Airfoil Inspection is available as an app for ZEISS INSPECT.

    Ready to start?

    If you have a pro version of ZEISS INSPECT, you can buy and use the app at any time.
